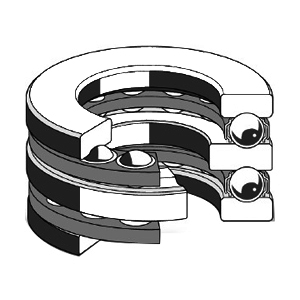

Double direction thrust ball bearings included one shaft washer, two housing washers and two balls and cage. this bearing can take axial loads in two directions, the washer is selfaligned. This can reduce the influence of installation errors. Double direction thrust ball bearings use the same shaft washer, housing washers and ball and cage with single direction thrust ball bearings. Every part can be separately installed, two structure design can take heavy axial loads but no radial loads.

Advantages of Thrust Ball Bearings

Raceway 100% grinding, reduce starting torque

Thickened pressed steel cage, roller is more stable.

Roller's select tolerance more precise, operations are stable with low noise.

Shape Design

Double Direction--Combined by two shaft washer, one housing washers and two ball and cage . One-piece pressed steel cage(Double direction).

Cage Category

Without Suffix--A one -piece pressed steel cage.

Q--Two-piece strength pressed steel cage.

M--A one-piece brass cage.

Besides we can offer other conventional internal and external variations or customized bearings according to customers' need.

•
• Single Direction Thrust Ball BearingsSingle direction thrust ball bearings use design that can take trust loads in high speed running. Single direction thrust ball bearings consist of one shaft washer, one housing washer and a ball and cage. Since the rings are housing washer shape, it can take heavy axial loads but no radial loads. According to the stress condition, it can be divided into single direction thrust ball bearings and double direction thrust ball bearings.
