Spherical plain bearings are plain bearings with special structure. These bearings have an inner ring with an outer spherical surface and outer ring with a inner spherical surface. Spherical plain bearings' structure are simpler than roller bearings, they mainly combine with an inner spherical surface and outer ring with a inner spherical surface. Spherical plain bearings usually used in swing motion in low speed. Because the plain surface is spherical surface, this bearing is the metal connect bearing. It must take either the misalignment between the shaft and housing, or be able to reciprocating or regular oscillation in low speed. It can still work when there's a huge non-concentricity between supporting bearings and bearing shell bore. Generally the bearing can be divided into open (without seal) and double rubber seal design.

Advantages of Plain Bearings

1. Grinded plaining connect face, reduce running resistance.

2. The surface is phosphate coated, corrosion-resistant.

3. 30 years experience in manufacture, trust worthy.

Shape Design

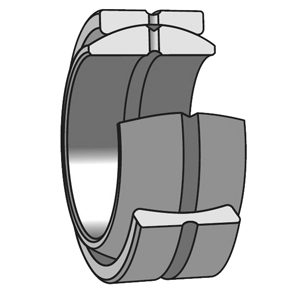

GE**ES--A axial slots in outer ring, spherical plain bearings with lubricants groove.

GEZ**ES--A axial slots in outer ring, British system spherical plain bearings with lubricants groove.

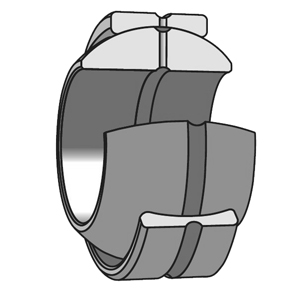

GEH**ES--Wide inner diameter and bigger outer diameter are more suitable for big swinging angle and heavy load machine.

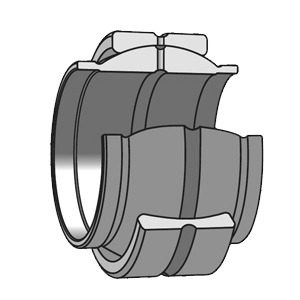

GEM**ES--Both sides in inner ring have cylinders, the outer ring has a axial slots.

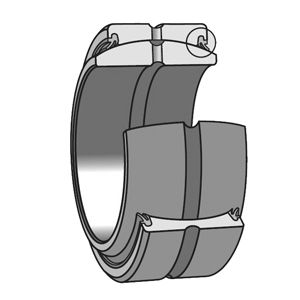

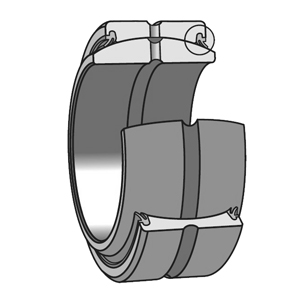

2RS--Both sides of outer ring have steel seal ring.

Besides we can offer other conventional internal and external variations or customized bearings according to customers' need.

•
• Angular Contact Spherical Plain BearingsAngular contact spherical plain bearings have spherical grinding connect face in both inner and outer ring. They have no roller elements, they are apply to take combine lodas(radial and axial). When install angular contact spherical plain bearings series, the location of outer ring split face should be special noticed. In order to avoid loads directly work on the split face....

•
• Thrust Spherical Plain BearingsThrust spherical plain bearings like angular contact spherical plain bearings, their plaining connect face are all in shaft washer and housing washer. And form a angle with the bearing shaft. It can take axial load in one direction or combine loads(The radial load component should, however, not exceed 50% of the simultaneously acting axial load). Plain bearings also have free maintenance design.
