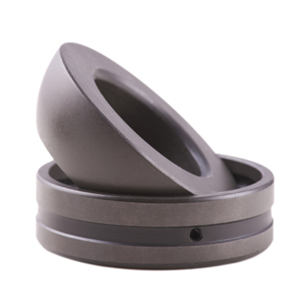

Thrust spherical plain bearings like angular contact spherical plain bearings, their plaining connect face are all in shaft washer and housing washer. And form a angle with the bearing shaft. It can take axial load in one direction or combine loads(The radial load component should, however, not exceed 50% of the simultaneously acting axial load). Plain bearings also have free maintenance design. Usually use asalloy bronze material for outer ring plaining face, inner ring is quenched bearing steel, plaining surface column with hard chromium. Only for small size bearings. Outer ring is bearing steel, plaining surface is a coating of PTFE fabric , inner ring is quenched bearing steel, plaining surface column hard chromium. These bearings do not need maintenance.

Advantages of Plain Bearings

1. Grinded plaining connect face, reduce running resistance.

2. The surfacer is phosphate coated, corrosion-resistant.

3. 30 years experience in manufacture, trust worthy.

Shape Design

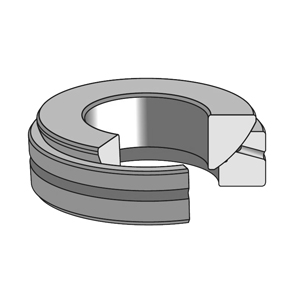

GX--Thrust spherical plain bearings is like angular contact spherical plain bearings,their plaining connect face are separate in shaft washer and housing washer, and they all become a angle with bearing shaft.

Inner Design

S--Inner ring with oil groove, outer ring with oil raceway and oil filler hole.

E--Sliding - friction: outside connect face of inner ring is steel/inside connect faceof outer ring is steel. (steel /steel).

C--Sliding - friction: outside connect face of inner ring is steel/inside connect faceof outer ring is PTFEl fabric materials. (steel /fabric).

N--Sliding - friction: outside connect face of inner ring is steel/inside connect faceof outer ring is PTFE FRP materials. (steel /plastics).

Besides we can offer other conventional internal and external variations or customized bearings according to customers' need.

•
